• White-Box Digital Modeling Technology Delivering Organic Living Tone, 3rd Party IR Support (5 User Slots) for creating Custom Unique Sounds.
• 100+ Built-in Guitar/Bass/Acoustic Effects with 20 Legendary Amp Models, 24-bit 44.1kHz Signal Processing.
• 99 Built-in Drum Rhythms and Looper, 100 Presets, Adjustable Signal Chain with Maximum 9 Simultaneous Effect Blocks.
• USB Audio Interface with Stereo Audio Streaming, Support OTG function for directly connecting to iOS/Android Mobile Devices, BT audio connection.
• Free Mac/Windows/IOS/Android Software for Sound Editing and Presets Managing. The built-in lithium battery provides up to 4 hours of continuous use.

Description:

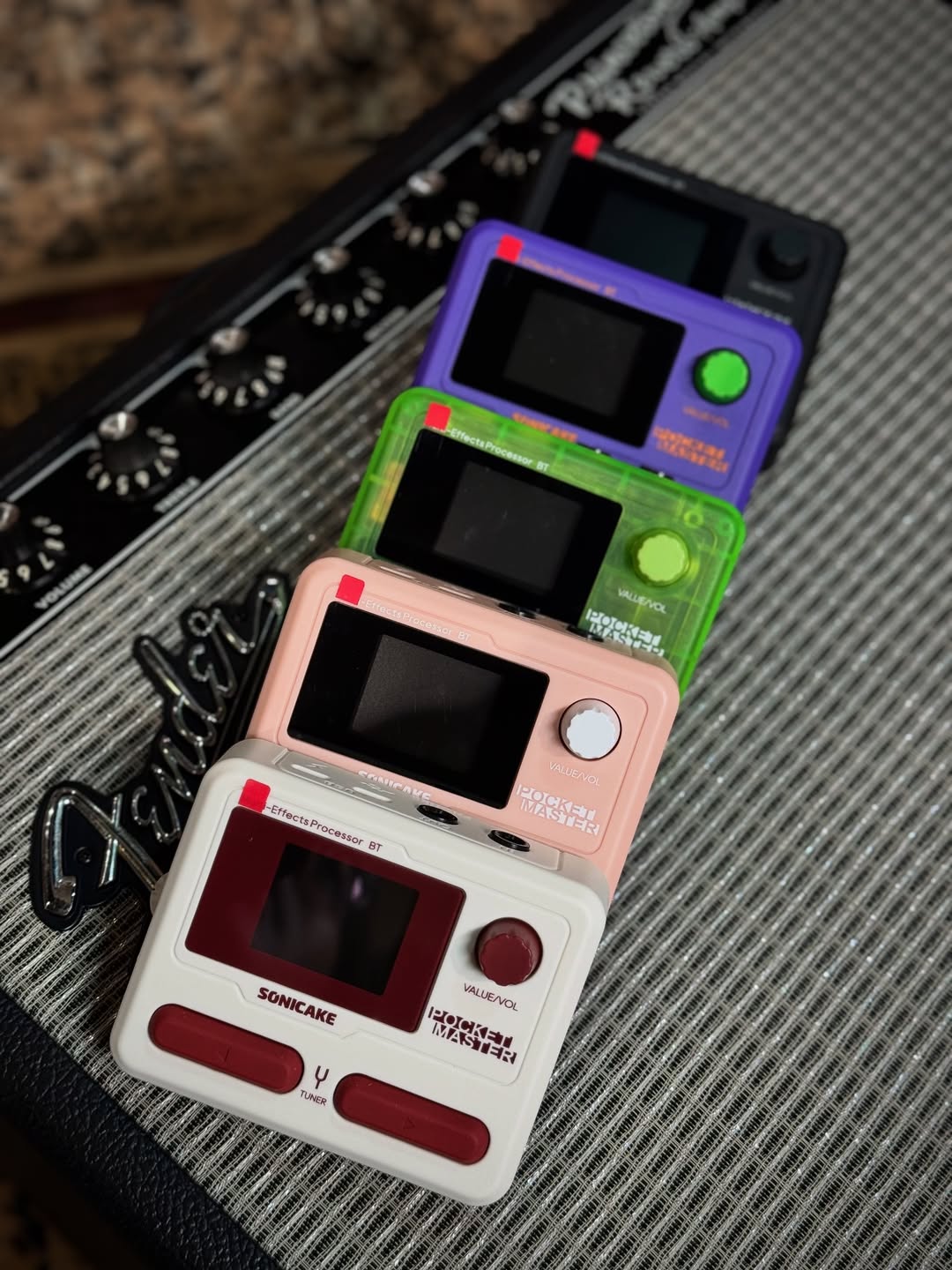

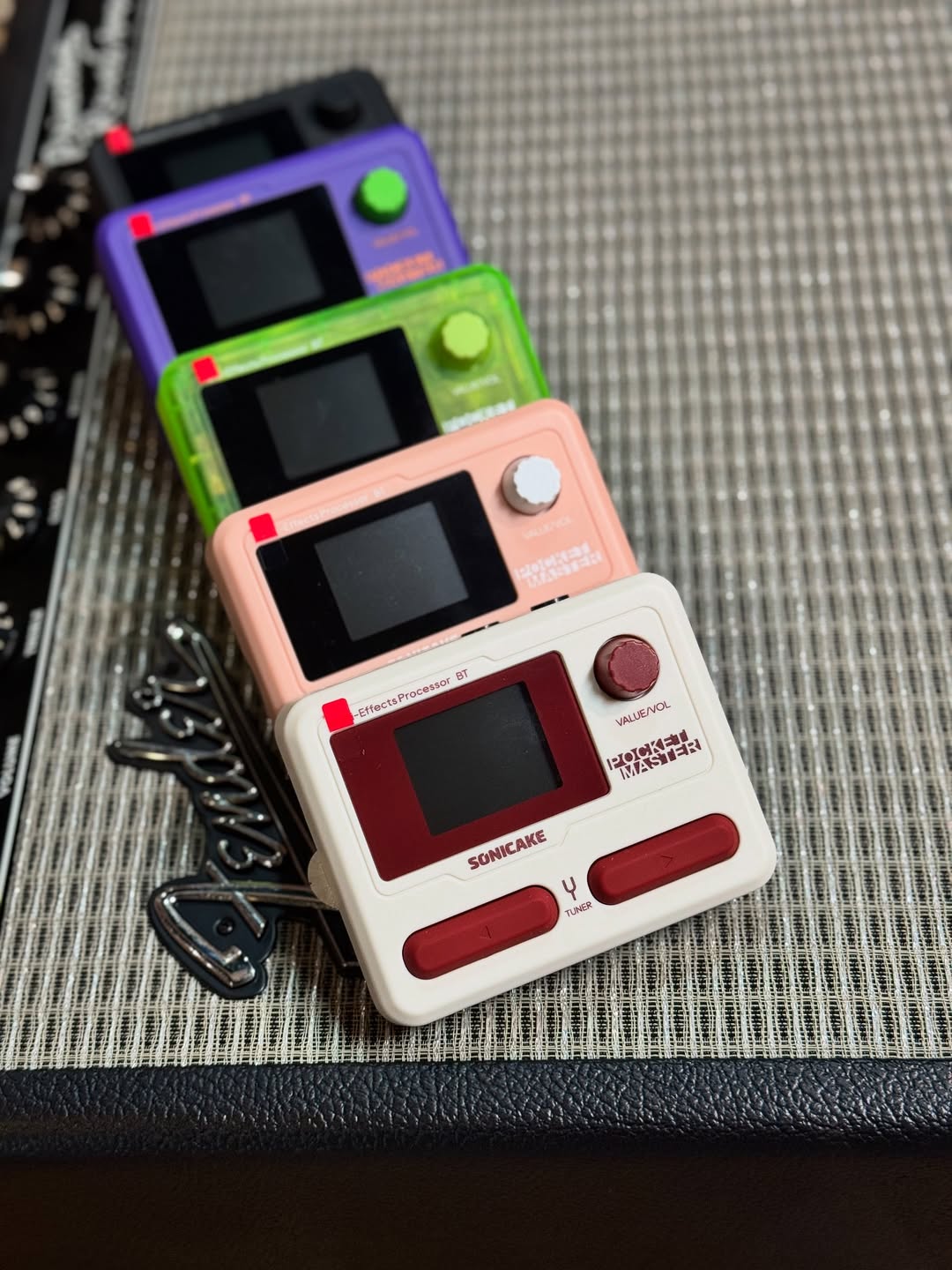

Pocket Master is a compact multi-effects processor with potent circuit design and high quality digital effects. It contains 100+ various effects suitable for different musicians, whether you play electric guitar, acoustic guitar, bass, even keyboard, etc., it can make your playing sound more attractive.

————————————————————-

Release Note

Driver
Sonicake USB ASIO Driver V5.57.1

Latest Firmware Version
Pocket Master Firmware V1.3.3

Latest Software Version for iOS
SONICLINK V1.3.2 (Apple Store – Search “Sonicake” / “Soniclink” / “Pocket Master”)

Latest Software Version for Android
SONICLINK V1.3.2 (Or Google Play – Search “Sonicake” / “Soniclink”)

Latest Software Version for Mac & Windows
Pocket Master Software V1.3.0 for Mac
Pocket Master Software V1.3.0 for Windows

User Manual
Pocket Master User Manual (Firmware V1.3.0)

More History Versions…

————————————————————-

Features:

✪ Excellent white-box digital modeling technology to create high-quality tone
✪ 24-bit 44.1kHz signal processing
✪ Over 100 high quality effects
✪ Editable effect chain
✪ 20 legendary guitar/bass/acoustic amp types
✪ Supports storing 5 user IRs
✪ USB audio interface function with stereo audio streaming
✪ 100 presets (50 factory, 50 user)
✪ 99 high quality drum patterns
✪ Built-in chromatic tuner
✪ Intuitive Windows/Mac/IOS/Android editor
✪ 1/4″ stereo/headphone outputs
✪ Power Requirements: USB Type-C, DC 5V, Built-in lithium battery: 1000mAh

Specifications

A/D/A Converter: 24-bit
Sampling Frequency: 44.1kHz
SNR: 103dB
Maximum Simultaneous Effects: 9
Preset Memory: 100 Presets Slots, 50 Factory Presets
Analog Input Connections
– Guitar Input: 1/4″ (6.35mm) Unbalanced (TS), 1M Ω
Analog Output Connections
– Output (Headphone): 1/4″ (6.35mm) Stereo (TRS), 100 Ω
Digital Connections
– USB 1/2 Port: USB 2.0 Type C Port
USB Recording Specification
– Sample Rate: 44.1kHz
– Bit Depth: 16-bit
Size and Weight
– Dimensions: 103.5mm (W) x 85mm (D) x 28.5mm (H)
– Unit Weight: 194g
Power
– Power Requirements: USB Type-C, DC 5V
– Built-in lithium battery: 1000mAh
